Floorplan - 2003 Jayco Kiwi 21 C
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
+18- List Price: $9,995
-
22ft long
-
3,230 lbs
-
Sleeps 6
-
2 slides
-
Rear BedroomFront Bedroom

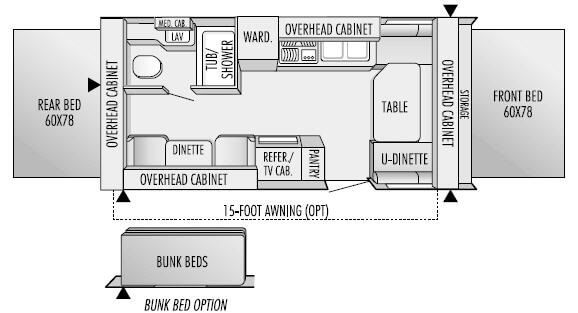

21 C Floorplan
Specifications
| Sleeps | 6 | Slides | 2 |
| Length | 21 ft 9 in | Ext Width | 7 ft 6 in |
| Ext Height | 8 ft 9 in | Int Height | 6 ft 6 in |
| Hitch Weight | 420 lbs | GVWR | 4550 lbs |
| Dry Weight | 3230 lbs | Cargo Capacity | 1320 lbs |
| Fresh Water Capacity | 30 gals | Grey Water Capacity | 30 gals |
| Black Water Capacity | 25 gals | Tire Size | ST 175/80R13B |
| Furnace BTU | 20000 btu |
Description
Double Slide, Rear 60x78 Bed Slideout, Lav, Medicine Cabinet, Tub Shower, Booth Dinette, Opt. Bunk Beds, Refrigerator/TV Cabinet, Pantry, Wardrobe, 3 Burner Range, Double Kitchen Sink, U-Dinette, Storage, Front 60x78 Bed Slideout, Overhead Cabinets, 25 Ft. 7 In. Exterior Campsite Length, and Much More!
Features
Standard Features (2003)
Construction
- Tuff-Shell vacuum-bond laminated walls, roof and floor
- 1" tubular-aluminum frame
- Bead-foam insulation - R7 in roof floor, R5 in sidewalls
- Smooth one-piece fiberglass exterior with luan substrate
- Modular HSLA steel E-Coated frame
- Unitized 1-1/2" laminated floor construction
- One-piece Polyflex underbelly covering
Heat, Power and Water
- Twin 20 lb. LP-gas tanks with auto regulator mounted on frame
- Pre-wired for air conditioning
- 30-amp high efficiency electronic converter
- 28 ft. 30-amp power cord
- Auto-ignition furnace with thermostat
- Pre-wired for air conditioning
- Shurflo demand water pump
- 6-gallon gas water heater
- Monitor panel
- TV antenna w/cable hook-up
Exterior
- Independent torsion-axle suspension system
- White-framed radius-cornered door with dead bolt
- White-framed, radius cornered baggage doors with grab handles
- Sewer-hose storage compartment
- White-framed radius cornered awning windows
- Patio light with inside switch
- 110-volt exterior receptacle
- Non-skid retractable entrance step
- Automotive-style steel bumper
- Safety chains and breakaway switch
- Goodyear radial tires
- Stabilizer jacks (2 pair)
- Pass-thru storage compartment
- 10" electric brakes
- Boltaflex CT one-piece tent
- Outside entry assist handles
- Lockable end bunks
- TPO roof
- E-Z Lube axles
Interior
- Oak-framed flat panel doors and drawers
- Cabinets crafted with "stile" construction
- Armstrong no-wax vinyl flooring
- Reversible cushions with vinyl backs
- Command lighting system
- 3-burner range top
- Pre-wired for microwave oven installation
- White acrylic kitchen sink
- Sink cover cutting board (21 C, 23 B, 23 D, 25 E)
- Home style mixing faucets
- Flush-mount refrigerator(3 cu. ft.: 17 A, 5 cu. ft.: 21 C, 23 B, 23 D, 25 E)
- Range hood with light and fan
- Extra-tall overhead cabinets
- Color-coordinated countertops
- Large wardrobes with home-style handles
- TV cabinet or flip-up TV shelf
- 12-volt power vent with frosted lens (bathroom) (21 C, 23 B, 23D, 25E)
- Shower curtain
- Large drawer in U-dinette
- Bunk end lights
- Large kitchen window
- Ducted heat (21 C, 23 B, 25 E)
- Straps to secure front bed mat/canvas
- 78" ceiling height
- Stereo prep w/2 speakers
- Mini blinds
2 + 3 Warranty (To Original Purchaser)
- 2 year hitch to bumper coverage
- 3 year structural guarantee
- Transferable within the first 2 years for a $100 processing fee
See us for a complete list of standard features and options.
