Floorplan - 2016 Forest River RV Rockwood High Wall Series HW277
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
1 of 41
+41- List Price: $10,995
Payments From:
$106 /mo.
-
Sleeps 6
-
1 Slides
-
Outdoor KitchenU Shaped Dinette
-
19ft Long
-
3,314 lbs

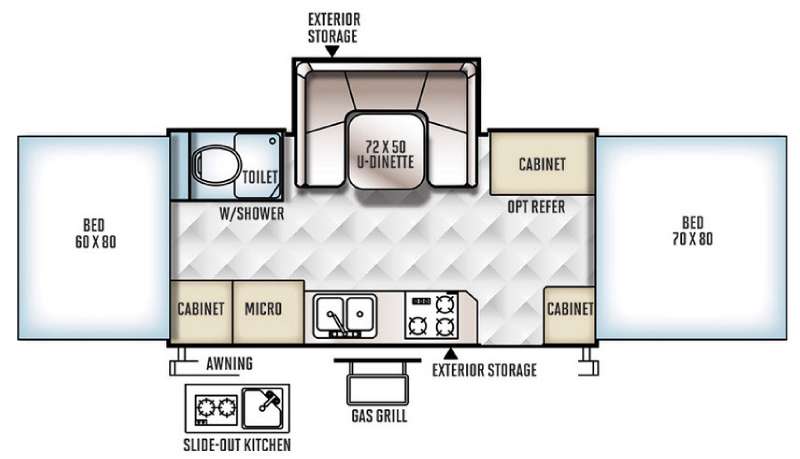

HW277 Floorplan
HW277 Floorplan
Specifications
Specifications
| Sleeps | 6 | Slides | 1 |
| Length | 19 ft 4 in | Ext Width | 7 ft |
| Ext Height | 5 ft 11 in | Hitch Weight | 377 lbs |
| GVWR | 3877 lbs | Dry Weight | 3314 lbs |
| Cargo Capacity | 563 lbs | Fresh Water Capacity | 26 gals |
| Grey Water Capacity | 12 gals | Black Water Capacity | 12 gals |
| Tire Size | 14" |
Description
Description
The single slide folding pop-up camper Rockwood High Wall Series HW277 from Forest River offers a front king and a rear queen tent end bed.
One back corner holds a hard wall shower area which includes a cabinet and a toilet. Along this same side, a slide out houses a generous 72" x 50" u-shaped dinette. At the front a cabinet holds the optional refrigerator.
The opposite corner wall offers a cabinet. The back corner holds another cabinet. The kitchen offers a microwave, double kitchen sink, and three burner range with oven.
Outside, you will find a slide out kitchen with two burner stove top and sink. You also get a gas grill and an awning with the Rockwood HW277. An easy access trunk door is located next to the entry door for storage access.
Features
Features
Standard Features (2016)
- Cherry Interior with "Wood-Look" Linoleum (Std. Premier, High Wall)
- Hickory Interior with "Wood-Look" Linoleum (Std. LTD, Freedom)
- Two-Tone Fabric Seating
- Residential Style Kitchen Faucet (Except High Wall)
- Stainless Steel Look Appliances and Sink (Premier, High Wall)
- Double Pan Sink with High Rise Faucet (High Wall Only)
- Electric Water Pump
- Hot Water Package (Incl. Water Filter, Outside Shower, Six Gallon DSI Hot Water Heater, Demand Water Pump) (Opt. F: 1910, 1970, 1980,) (Std. F: 1950, 2270, 2280, 2280BH, 2318G)
- Port-a-Potty (F: 1910, P: 2514G Only)
- Shower and Cassette Toilet Package Incl. Cabinet w/ Shower, Cassette Toilet and Shower Curtain (Opt. F: 2280, 2280BH, 2318G) (Std. F:1950, 2560G, P: 2516G 2716G)
- Hard Wall Shower with Residential Flush Toilet and Monitor for Holding Tanks, Battery and Water Pump Switch (Std. High Walls)
- Spray Away Utility Hose (HW: HW316TH Only)
- Antifreeze Inlet to Bypass Fresh Water Tanks When Winterizing
- Fold Over Galley with Upper and Lower Storage (Std. LTDs, P: 2514G Only)
- Two Burner Free-Standing Range (Std. LTDs)
- Swing Level Galley with Storage (N/A LTD, High Wall, Premier: 2514G, 2317G)
- Permanently Mounted 3-Burner Indoor Range w/ Stove Cover (Std. Freedom)
- Permanently Mounted 3-Burner Indoor Range w/ Glass Stove Top Cover (Std. Premier)
- Three Burner Glass Top Stove with Oven (Std. High Walls Only)
- Microwave (Std. High Wall)
- Large Built-In Icebox
- 110V Electric Outside Accessible Refer (Premier: 2716G Only)
- 3 Way Refer 1.9 cu. ft. (Opt. LTD, Freedom)
- 3 Way Refer 2.5 cu. ft. (Opt. Premier)
- Extra Large 3 Way Refer (Opt High Walls)
- Free Standing Lite-Ply Table–High Pressure Laminate (Most Models)
- Comfortable Family Style Dinette w/ 4" Cushions(Std. on All Series Except Freedom ; Opt. Pkg A on Freedom Models)
- Residential Style Raised Panel Doors (Std. Premier, High Wall)
- Wood Drawers w/ Full Extension Metal Guides
- Large Clothes Bar (Std. Premier, High Wall)
- Hanging Wardrobe (Opt. Premier, High Wall)
- Hanging Pantry (Opt. Freedom, Premier, High Wall)
- USB Charging Ports (N/A LTD)
- AM/FM Stereo with CD player (Std. Premier, High Wall)
- AM/FM Stereo with CD and DVD player (HW296 Only)
- TV Outlet with Cable and Satellite Hook Up (N/A LTD)
- LCD TV (HW296 Only)
- 30 Amp Detachable Power Cord w/ Storage Bag (N/A LTD)
- 25 Amp Converter w/ Built in Battery Charger (LTD Only)
- 35 Amp Converter w/ Built in Battery Charger (N/A LTD)
- 12V Safety Breaker
- Roof Vent (LTD Only)
- Three Speed Ventilation Fan (N/A LTD, Standard Option on all other Series)
- Air Conditioner Wiring Kit (Opt. on All)
- 13.5k BTU Low Profile Air Conditioner (Factory Installed) (Opt. High Walls)
- 15k BTU Low Profile Air Conditioner (Factory Installed) (Opt. High Walls)
- 20k BTU Forced Air Furnace w/ Electric Ignition (Opt. on all Series)
- Interior Floor Lights (Std. High Wall)
- 2 Ceiling LED Lights and Jacks for Accessories (Std. LTD)
- 3 Ceiling LED Lights and Jacks for Accessories (Std. Freedom, Most Premier Models)
- 4 Ceiling LED Lights and Jacks for Accessories (Premier: 2716G Only)
- Bunk LED Light with Fan (Std. Premier, High Walls)
- LED Bunk Light (Freedom: 2318G, 2560G; Premier Series, High Walls)
- LP Leak/Carbon Monoxide Detector
- Privacy Curtains (Std. On all Except Freedom; Option Package A on Freedom)
- Deluxe Pull Up Curtains (Std. Premier, High Wall)
- Roof Valances (Std. Premier, High Walls; Option Package A on Freedom)
- Storage Net Over One Bunk (Std. Freedom, Premier, High Walls Except N/A HW316TH)
- Quilted Top Bed Mattresses
- Deluxe Quilted Top Bed Mattresses
- Quilted Top Memory Foam Innerspring Mattresses (Std. Premier, High Wall)
- Quilted Top 60” x 80” Innerspring Mattresses
- Thermostatically Controlled Heated Mattresses (Standard Option)
- Leaf-Spring Axle (Std. LTD, Freedom)
- Independent Torsion Axles (Std. Premier, High Wall)
- Easy Lube Axles (N/A LTD)
- Spare Tire, Cover and Mount (Std. LTD; Part of an Optional Package on All Other Series)
- 12” Radial Tires (Std. LTD)
- 13” Radial Tires w/ Aluminum Wheels (Std. Freedom, Premier)
- 14” Radial Tires w/ Aluminum Wheels (Std. High Walls)(Note: Dual Axle Models HW296, HW316TH)
- Electric Brakes (Opt. LTD, Std. on all other Series)
- Slam Latches on Front Trunk Side Doors (Premier: 2317G, 2514G, 2516G Only)
- 28.5" Front Storage Deck w/ 200 lb Weight Capacity (Std. Freedom: 2280BH)
- 54" Front Storage Deck w/ 650 lb Wt. Capacity (Select Models)
- 105" Front Storage Deck w/ 1300 lb Weight Capacity (Std. High Wall: HW316TH Only)
- Toylok Mounted Locking System (Freedom: 2280BH, High Wall: HW316TH)
- (4) Bike Rack (Optional) (N/A High Wall: HW316TH)
- Power Lift System (Opt. LTD, Opt. Freedom, Std. Premier, Std. High Walls)
- Built-in A-Frame Mounting Provision for Equalizer Hitch Bar Installation
- Battery Box and Wiring Kit (Opt. LTD, Std. on all other Series)
- Solar Panel Prep
- 40 Watt Solar Panel (Opt. on all Series)
- 20 lb. LP Bottle (Std. LTD, Freedom, Premier Series)
- Dual 20 lb. LP Bottles with Cover and Automatic LP Regulator (Opt. LTD, Freedom)
- Dual 20 lb. LP Bottles with Molded Hard Cover and Automatic LP Regulator (Std. High Walls)
- Diamond Plated Lower Front Cap (Std. Premier, High Wall)
- Awning (Std. LTD, Freedom: Opt. Pkg B, Premier: Opt. Pkg. 1, High Wall: Opt. Pkg. 1)
- Under Awning LED Light Strip (N/A LTD)
- Screen Room w/ Privacy Panels (Optional)
- Outdoor Gas Grill w/ Worktable (Opt. LTD, Std. on all other Series)
- Outside Speaker (N/A on LTD, Freedom)
- Patio Light (LTD: 1940LTD Only, Freedom: Opt. Pkg. A, Std. on Premier, High Wall)
- Courtesy Light on Front (Freedom: 2280BH, High Wall: HW316TH)
- 110V Exterior Outlet (LTD: 1940LTD only, Freedom: Opt. Pkg. A, Std: Premier, High Wall)
- Black Water Hose Storage (Std. High Wall)
- Door Step (Std. LTD, Freedom: Opt. Pkg. B, Premier: Opt. Pkg. 1)
- Double Door Step (High Wall)
- One Piece Screen Door (N/A LTD)
- Folding Grab Handle (N/A LTD)
- Exterior Graphic Design
Construction
- Fiberglass Vacuum Bonded Radius Roof w/ No Center Seam
- Steel Air Conditioner Vent Reinforcing Laminated Into Roof (Std: LTD, Premier, High Wall, Opt Pkg A: Freedom)
- CP 3-Stage Double Arm Lifter Posts
- Smooth Tan Fiberglass Vacuum Bonded Exterior w/ Black Accents (N/A LTD, Freedom)
- Lower Door Operational in Closed Position
- Five Piece Sectionalized Vinolon Supreme Tenting
- Tent Permanently Attached on Bunk Ends and Slide Out
- Plywood Bunk Ends
- Full Perimeter Aluminum Bed Frames
- Easy Glide Scissor Pole Bed Supports (N/A LTD)
- Powder Coated Rafter Poles and Bed Bows
- Tinted Vinyl Windows
- One Piece Undercoated Structure Wood Floor
- Powder Coated Tubular Steel Frame
- Rear Crank Down Stabilizer Jacks w/ Sand Pads (Std. LTD)
- (4) E-Z Crank-Down Stabilizer Jacks w/ Sand Pads (N/A LTD)
- Seamless, High Density Polyethylene Wheel Wells
- 11 Gallon Fresh Water Tank (Std. LTD)
- Under Floor 20 Gallon Fresh Water Tank (N/A LTD)
- 12 Gallon Gray Water Holding Tanks (Std. High Wall)
- 12 Gallon Black Water Holding Tank (Std. High Wall)
- 2000 lb. Tongue Jack w/ Swivel Wheel
- Power Front Jack (Opt. High Wall)
- 7-Way Pigtail Plug
- Spare Tire
- Tire Bracket
- Tire Cover
- Installed Step
- Awning
Option Package A (Opt. Freedom)
- Privacy Curtains
- Roof Valances
- 4″ Foam Cushions w/ Cover
- Under Floor 20 Gallon Fresh Water Tank
- A/C Bracing
- Patio Light
- 110V Exterior Outlet
- Spare Tire
- Tire Bracket
- Tire Cover
- Installed Step
- Awning
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
